Het unieke dubbele kogel-en-socket ontwerp stelt u in staat om uw mount aan te passen aan de perfecte kijk- of bedieningshoek, allemaal met de draai van een enkele knop. Dit modulaire ontwerp kan geconfigureerd worden met een verscheidenheid aan verwisselbare onderdelen om aan uw specifieke montagebehoeften te voldoen.
B Size
Houdt 2 lbs / 0.91 KG
1" Kogel
Telefoons, actiecamera's, lichtgewicht tablets
C Size
Houdt 4 lbs / 1.81 KG
1.5" Kogel
Fishfinders, zware tablets
D Size
Houdt 6 lbs / 2.72 KG
2.25" Kogel
Monitoren, grote fishfinders
E Size
Houdt 15 lbs / 6.8 KG
3.38" Kogel
Zware monitoren
Balformaten Short Arm Medium Arm Long Arm
B Size Overall Length 2.42" / 6.1468cm 3.73" / 9.47cm 6.00" / 15.24cm
Socket-to-Socket Length 1.75" / 4.45cm 3.00" / 7.62cm 5.31" / 13.49cm
C Size Overall Length 3.56" / 9.04cm 5.69" / 14.45cm 9.13" / 23.19cm
Socket-to-Socket Length 2.50" / 6.35cm 4.66" / 11.84cm 8.00" / 20.32cm
D Size Overall Length 5.10" / 12.95cm 8.44" / 21.44 12.98" / 32.97
Socket-to-Socket Length 3.60" / 9.14cm 6.88" / 17.48cm 11.41" / 28.98cm
E Size Overall Length 7.31" / 18.57cm 12.63" / 32.08cm N/A
Socket-to-Socket Length 4.98" / 12.65cm 9.88" / 25.10cm N/A

RAM® Tough-Mag™ 48MM 3-Point Pivoting Magnetic Mounting Base

SKU Copied
SKU: RAM-MAG48-3-PIV1U
UPC Copied
UPC: 793442031960

RAM® Tough-Mag™ 48MM 3-Point Pivoting Magnetic Mounting Base
Copy SKU
SKU: RAM-MAG48-3-PIV1U
Copy UPC
| UPC: 793442031960

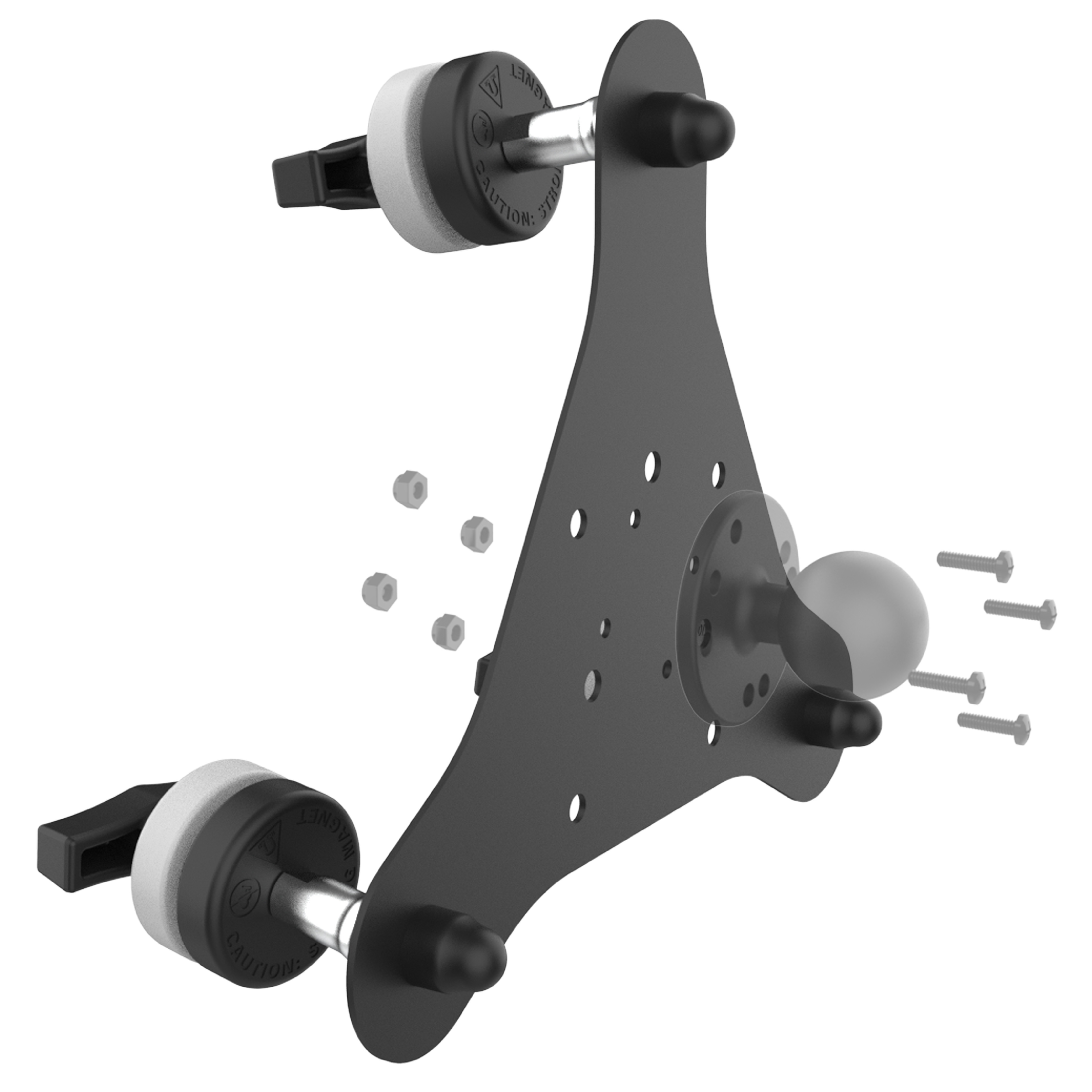

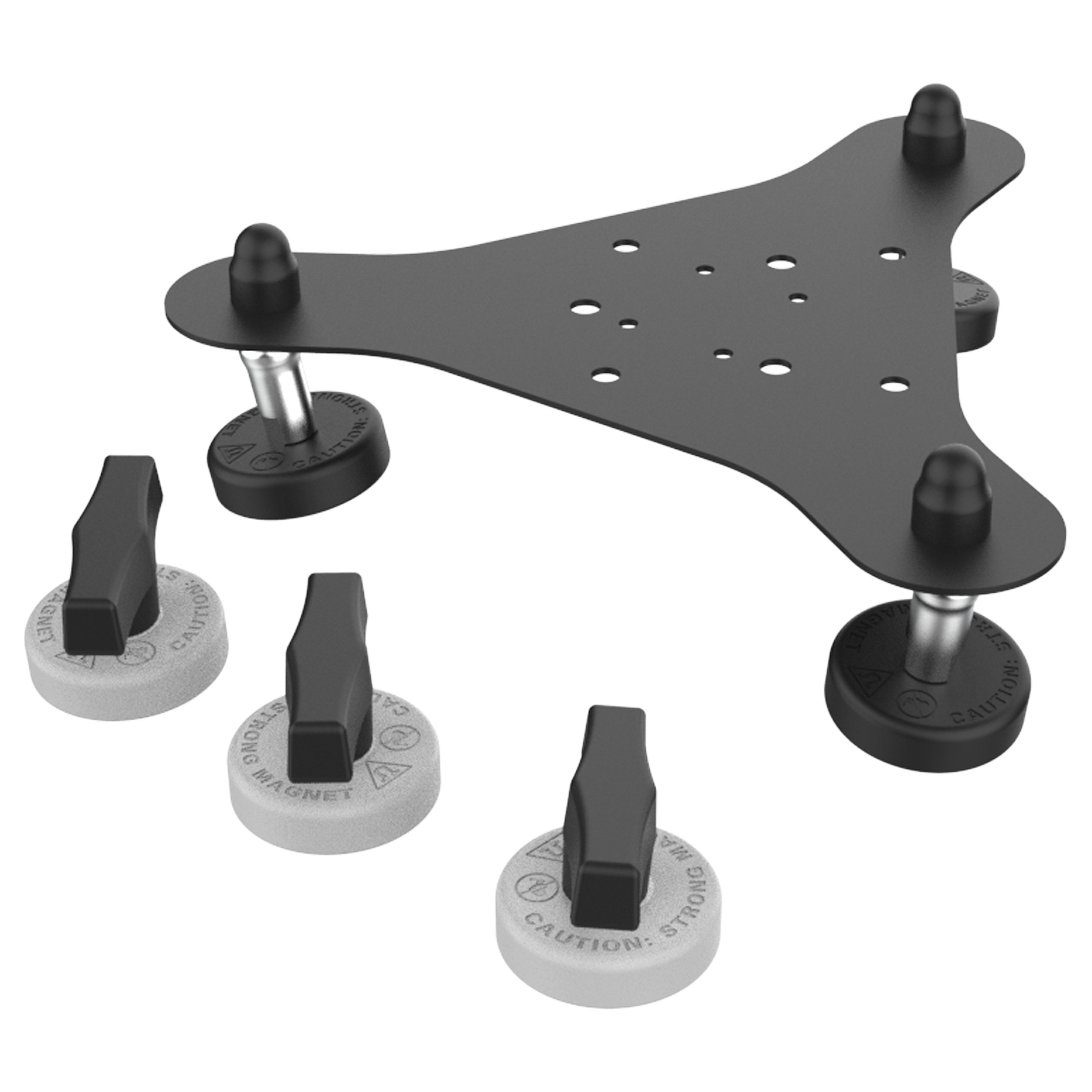

The RAM Tough-Mag 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) offers a flexible, high-strength solution for securing devices to flat glass or metal surfaces, including vehicle windows and windshields. Constructed with a durable aluminum plate, this base features three pivoting 48mm external magnets that adjust independently to ensure a secure hold on slightly curved or uneven surfaces. The plate includes a pre-drilled 4-hole AMPS pattern, ideal for attaching a C size drill-down ball base. Each magnet is rubber-coated to protect mounting surfaces, minimize harsh magnetic pull, and comes with an integrated handle for fast installation and removal. With its fully pivoting magnetic attachment points, this base provides unmatched versatility and secure mounting for any sturdy surface up to 6mm thick.

Features
  • Three-point aluminum plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness
  • All 3 attachment points feature pivoting hardware that allows the base to confirm to a curved surface
  • 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
  • Externe magneten bevatten handgrepen voor een eenvoudige installatie.
  • Met een levenslange garantie

Informatie

Hulpmiddelen

Offerte Opvragen

Informatie

Gatenpatroon
4-Hole AMPS: 3,00 cm x 3,80 cm (1.181" x 1.496")75 x 75mm VESA
